SPEED RAMP

Foodservice Delivery Ramp

$995 /ea
10 units +
$1,095 /ea
6 to 9 units
$1,225 /ea
2 to 5 units
$1,350 /ea
1 unit

715-392-4134



CONTACT FORM



Light Weight

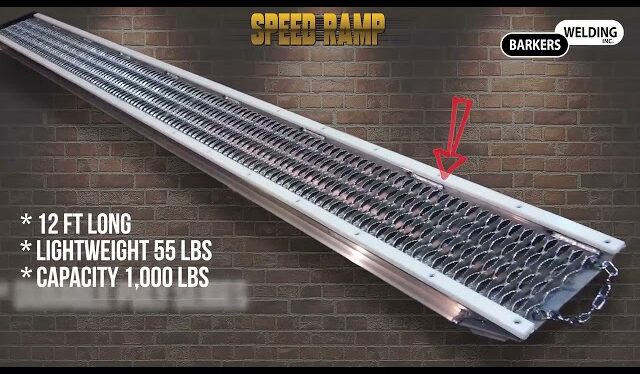

Speed Ramp™ has a unique slide-rail design; the dolly wheels hover to the sides while the handcart axle or frame rests on polyurethane slides. The 12" wide Speed Ramp™ weighs only 55 lbs. Barely one-third as much as typical aluminum unloading ramps.

Fast Unloading

The loaded dolly glides smoothly down to ground level on polyethylene slides. This design locks the cart into forward position eliminating any turning or bouncing off the guided path.

Safe & Easy

Speed Ramp™ includes an aluminum Grip-Strut walking path. This serrated surface offers incredible traction while allowing moisture and snow to simply pass through.

1,000 LB Capacity

Design includes two 3" 6061 alloy aluminum channel main support beams. Grip-Strut walking path is backed with 3/4" square tubing lateral supports. Combined this design results in both a half-ton capacity and longtime durability.

Since 1995 BWI has been fabricating Dolly Slide Ramps - also known as Speed Ramps™. The design is specific for drivers who make frequent stops unloading only a few boxes per location. A common challenge for foodservice delivery drivers stopping at dozens of bars, restaurants, and convenience stores per day.

Liftgates can be cumbersome, expensive, and maintenance heavy. In addition, while delivering less-than-pallet orders hydraulic lifts will actually slow down the unloading process. Therefore, distributors hesitate to install them on every delivery truck or trailer.

However, repeatedly dragging out a typical aluminum ramp can make for a back-breaking route. The solution is a BWI Speed Ramp™. At 12ft long and only 55 lbs, our unique slide rail design ramp is a much easier haul. Only one-third the weight of your typical ramp. Yet every bit as strong. Not just that, but our ramp has many safety and time-saving advantages as well.

Our slide-rail design effortlessly glides a dolly down to ground level. Straddling the 12” wide ramp, the handcart frame or axle smoothly descends on high-density polyethylene slides. The slides are supported by corrosion resistant 6061 alloy aluminum channels. The slide-rail design keeps the 2-wheeler perfectly centered, eliminating any chance of drifting off one edge. This allows the carrier to move at a much quicker pace.

While the channels support the dolly weight, a serrated Grip-Strut walking surface safeguards the operator. A long-lasting maximum-traction footpath with air gaps that allow moisture and ice to harmlessly fall through. Square tube bracing offers added support and longer life to the Grip-Strut walkway. In combination the channel frame and traction surface offer 1,000 pounds of support.

Speed Ramp™ is secured to the truck or trailer apron with a set of formed steel hooks welded to the transitional threshold plate. A thick aluminum skid plate with protective HDPE pads and a convenient handle allows for easy setup.

Our superior design is time-tested as strong and dependable for three decades. Please contact BWI for a quote. Special pricing on quantity orders can be expected.
